Amblygonite reflectance spectrum, IR illum., CSIRO 2025

Description	Reflectance spectrum of Amblygonite in M1135, from CSIRO Reflectance (2025). From original file 'Amblygonite_M1135_Batch_3_a_.0.dpt'.
Reference	Reflectance spectra measured by Carsten Laukamp and colleagues
Material	Amblygonite [ LiAl(PO₄)F ]
Analysis technique	Reflectance
Instrument	Bruker Vertex 80v FTIR spectrometer
Illumination	IR light source
Channel count	3667
Wavelength range	2004 … 16664 nm
Intensity range	0.245 absolute reflectance
Download	Amblygonite_M1135_Batch_3_a_.0.txt [80.0 kB]

Name	M1135 Amblygonite
Owner	CSIRO - ARRC Collection
Locality	Montebras, Soumans, Creuse, Nouvelle-Aquitaine, France
Link to CMR Specify database	https://cmr-specify.csiro.au/specify/bycatalog/CMR-MS/2024-MS-0000000036
Phase abundance (QXRD)	Amblygonite: 76% Lacroixite: 8% Variscite: 7% Wavellite: 6% Cassiterite: 1% Siderite (var. Mg): 1% Ankerite: <1% Calcite: <1% Siderite: <1%
Other measurements	Amblygonite, Ankerite, Calcite, Cassiterite, Lacroixite, Siderite, Variscite and Wavellite XRD quant/phase, x-ray beam, Owen et al. 2023 (Jobs # 6243, 6245)

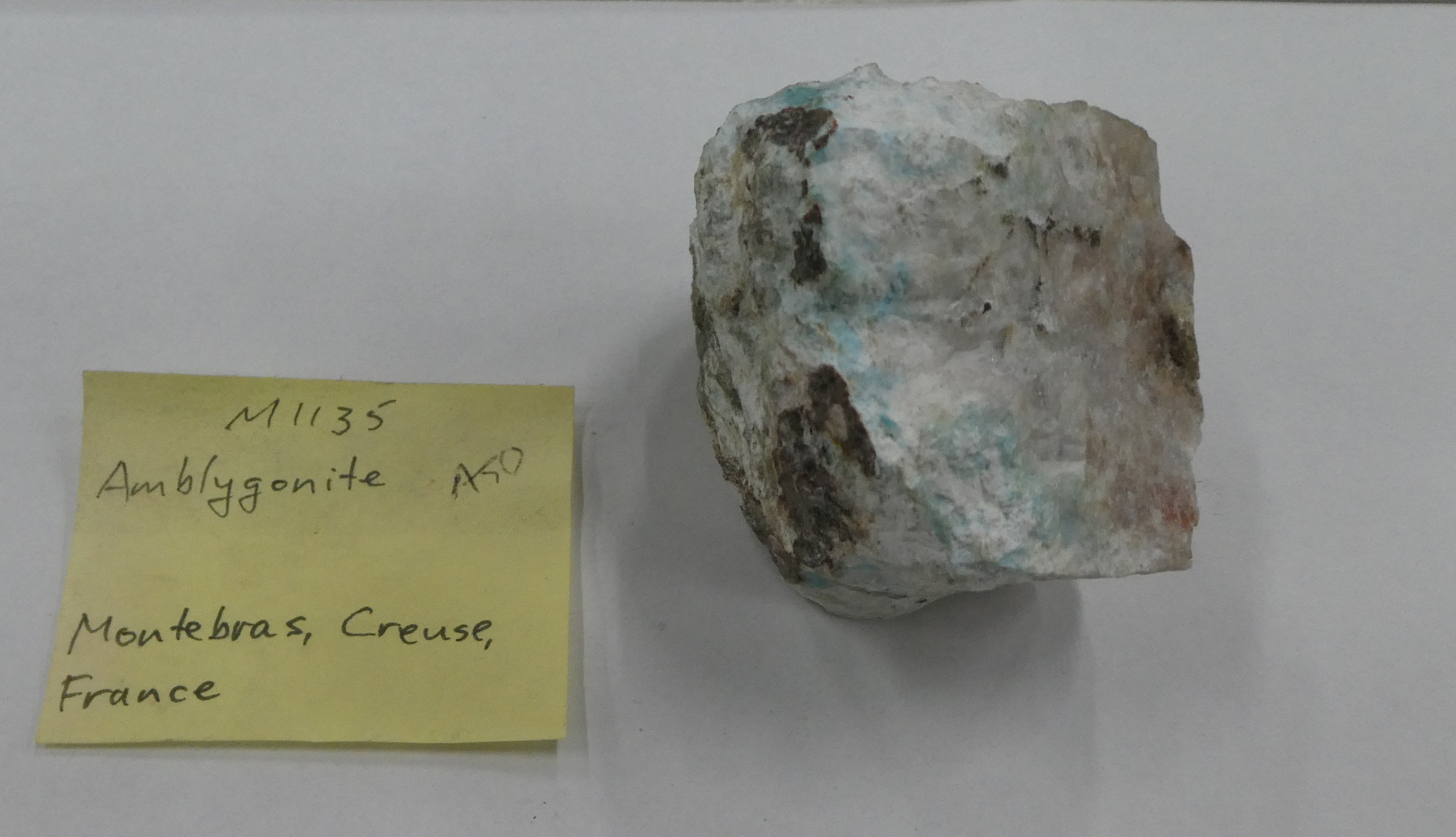

Image of Amblygonite, Cassiterite, Lacroixite, Variscite and Wavellite in specimen 'M1135 Amblygonite' [CSIRO].
