Bornite : CSIRO Spectroscopy Database

Bornite [ Cu₅FeS₄ ]

Image of Bornite

A specimen of Bornite, from the Lavender Open Pit Mine, Bisbee, Cochise Co., Arizona, USA. Size: 9.6 x 6.9 x 4.2 cm.

Photo by Rob Lavinsky, iRocks.com – CC-BY-SA-3.0

Material properties

Formula	Cu₅FeS₄
Abbreviation	Bn
IMA Status	Approved (IMA 1962 s.p.)
Search other databases	webmineral.com, mindat.org, rruf.info, mineralienatlas.de, Handbook of Mineralogy, American Mineralogist Crystal Structure Database
Crystal symmetry	Orthorhombic, Point group mmm, Space group Pbca (#61)
Tags	Mineral, Sulphide

Composition

Element	Atoms
Fe	1
S	4
Cu	5
Total:	10

Specimens of Bornite

Name	Owner	Materials	Phase purity	Image

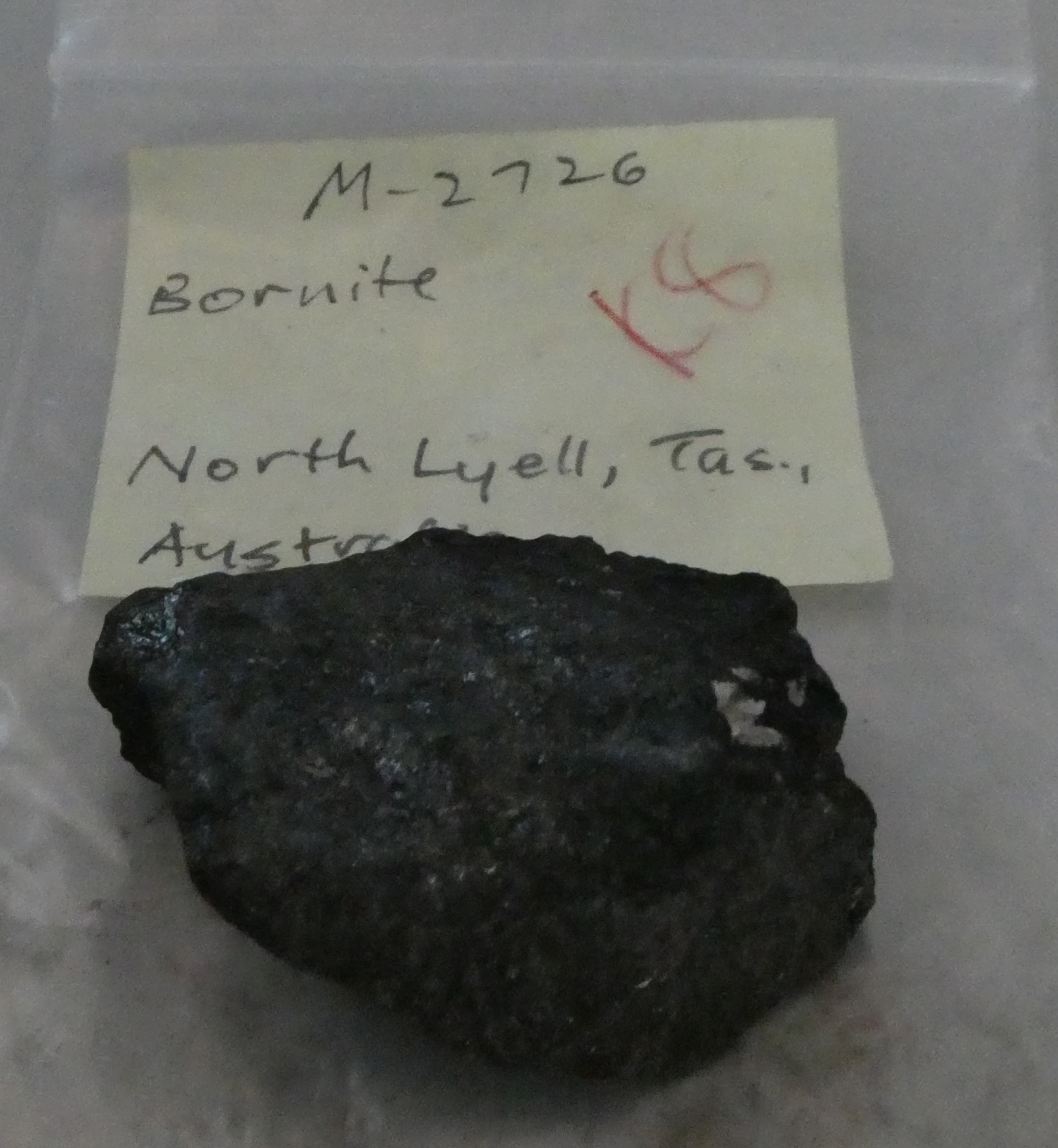

M2726 Bornite	CSIRO	Bornite (99.2%), Quartz	99.2	M2726 Bornite Image of Bornite and Quartz in specimen 'M2726 Bornite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.
M0331 Bornite	CSIRO	Bornite (89.5%), Chalcopyrite, Quartz	89.5	M0331 Bornite Image of Bornite, Chalcopyrite and Quartz in specimen 'M0331 Bornite' [CSIRO], from Moonta, Copper Coast Council, Yorke Peninsula, SA, Australia. (C) 2025 CSIRO Mineral Resources. All rights reserved.
M2447 Bornite	CSIRO	Bornite (87.2%), Calcite, Hydroxylapatite, Quartz	87.2	M2447 Bornite Image of Bornite, Calcite, Hydroxylapatite and Quartz in specimen 'M2447 Bornite' [CSIRO], from Mount Lyell, West Coast Region, Tasmania, Australia. (C) 2025 CSIRO Mineral Resources. All rights reserved.
M2245 Bornite	CSIRO	Bornite (80.5%), Chalcopyrite, Quartz	80.5	M2245 Bornite Image of Bornite, Chalcopyrite and Quartz in specimen 'M2245 Bornite' [CSIRO], from Moonta, Copper Coast Council, Yorke Peninsula, SA, Australia. (C) 2025 CSIRO Mineral Resources. All rights reserved.
M0329 Bornite	CSIRO	Bornite (75.7%), Djurleite, Quartz	75.7	M0329 Bornite Image of Bornite, Djurleite and Quartz in specimen 'M0329 Bornite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.

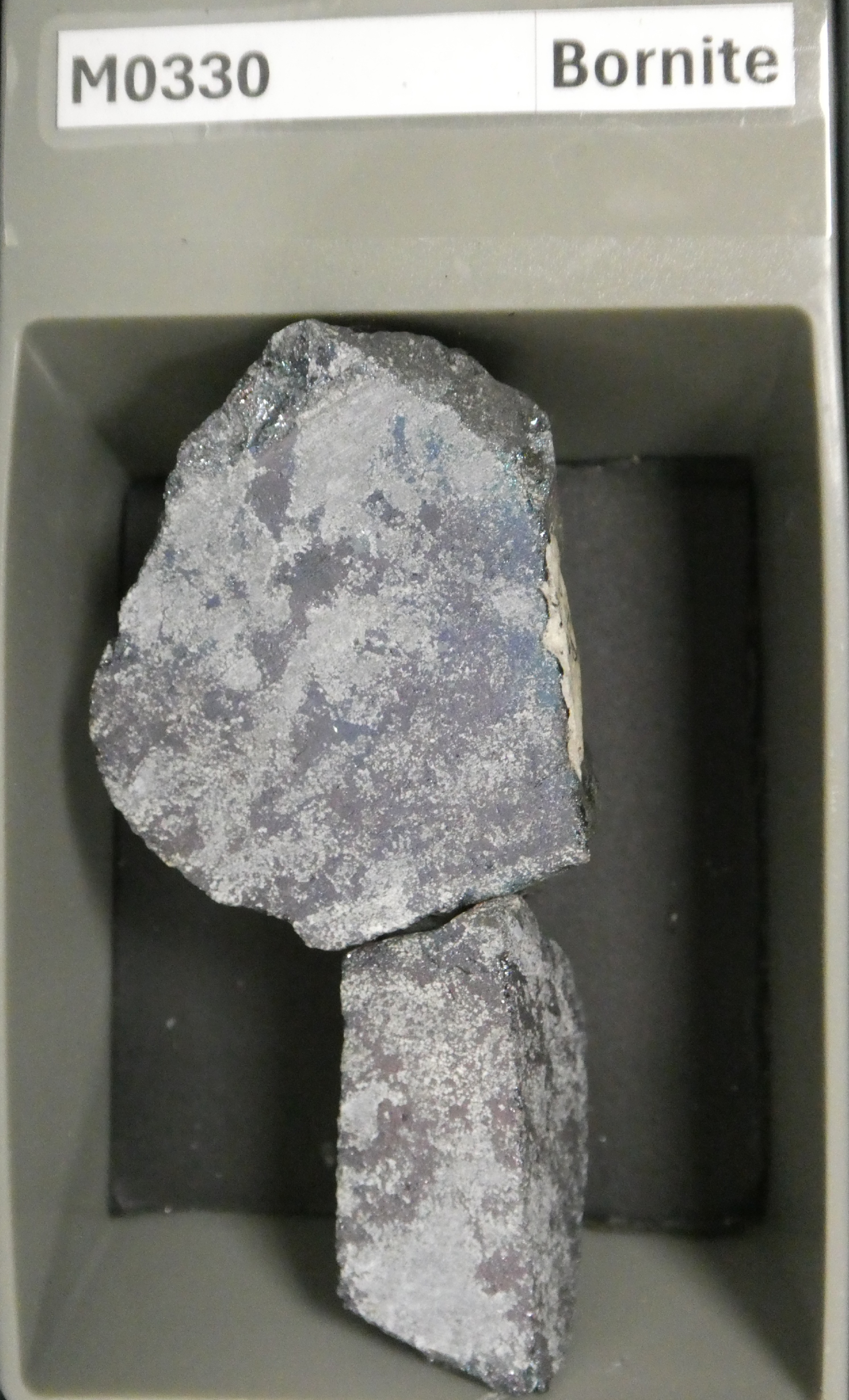

M0330 Bornite	CSIRO	Bornite (63.2%), Quartz	63.2	M0330 Bornite Image of Bornite and Quartz in specimen 'M0330 Bornite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.
M2755 Bornite	CSIRO	Barite, Bornite (51.6%), Pyrite, Quartz, Stromeyerite, Tetrahedrite-(Cu)	51.6	M2755 Bornite Image of Bornite, Barite, Pyrite, Quartz, Stromeyerite and Tetrahedrite-(Cu) in specimen 'M2755 Bornite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.
M0293 Bornite	CSIRO	Bornite (50.1%), Chalcopyrite	50.1	M0293 Bornite Image of Bornite and Chalcopyrite in specimen 'M0293 Bornite' [CSIRO]. (C) 2025 CSIRO Mineral Resources. All rights reserved.
M2729 Bornite	CSIRO	Bornite (42.9%), Calcite, Cassiterite, Kaolinite, Muscovite-2M1, Quartz, Siderite	42.9	M2729 Bornite Image of specimen 'M2729 Bornite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.
M2597 Bornite	CSIRO	Ankerite, Bornite (39.7%), Calcite, Chalcocite, Digenite, Quartz	39.7	M2597 Bornite Image of specimen 'M2597 Bornite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.
M2478 Bornite	CSIRO	Bornite (38.3%), Chalcocite, Digenite, Quartz	38.3	M2478 Bornite Image of Bornite with Chalcocite, Digenite and Quartz in specimen 'M2478 Bornite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.
M0298 Chalcocite	CSIRO	Bornite (33.3%), Chalcocite, low, Chalcocite-Digenite Group, Chalcopyrite, Clinochlore, Fe, Djurleite	33.3	M0298 Chalcocite Image of Djurleite, Bornite, Chalcocite (var. low), Chalcopyrite and Clinochlore (var. Fe) in specimen 'M0298 Chalcocite' [CSIRO]. (C) 2025 CSIRO Mineral Resources. All rights reserved.

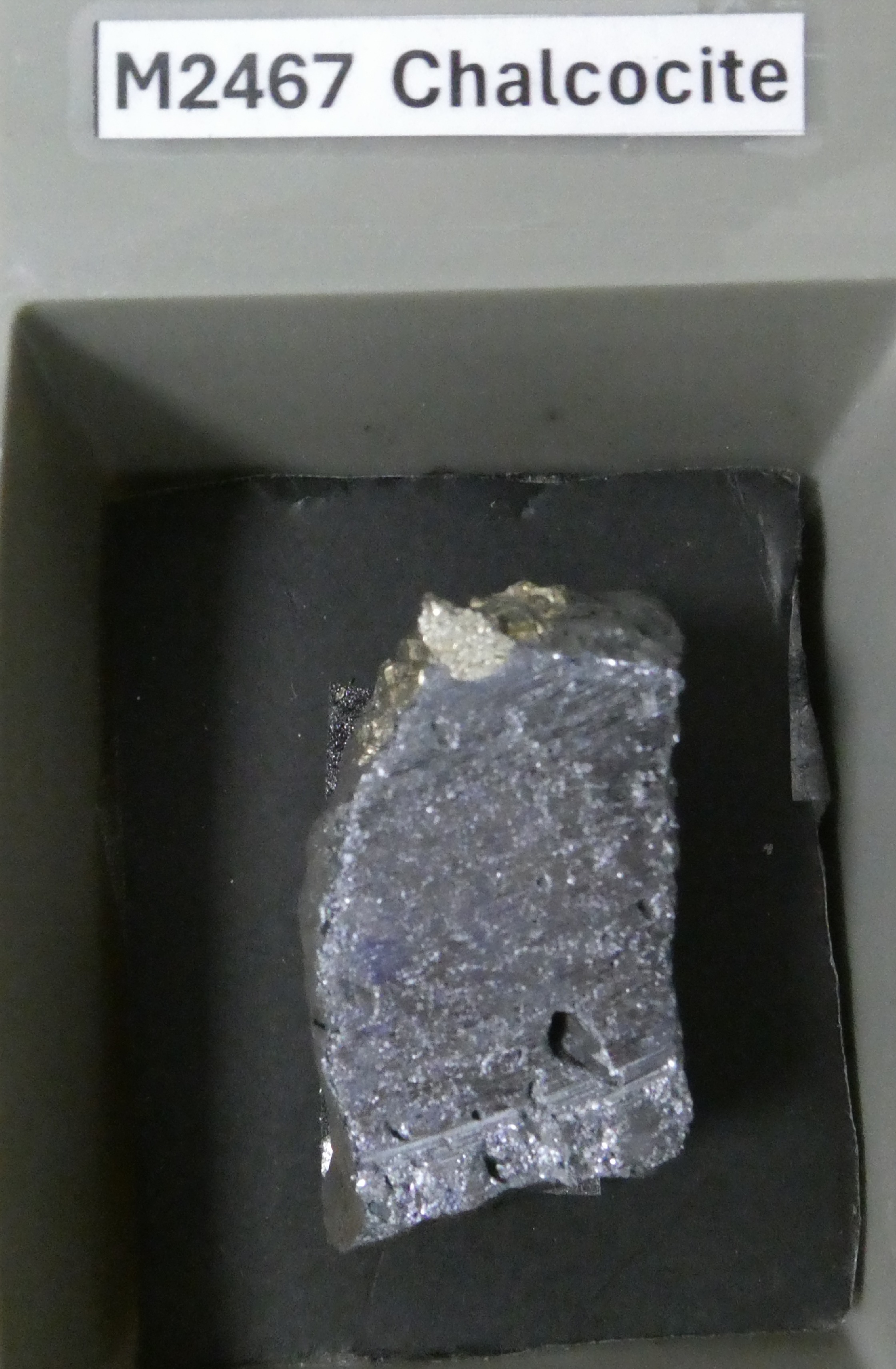

M2467 Chalcocite	CSIRO	Bornite (17.1%), Chalcocite-Digenite Group, Djurleite	17.1	M2467 Chalcocite Image of Djurleite and Bornite in specimen 'M2467 Chalcocite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.
M0301 Chalcocite	CSIRO	Bornite (7.0%), Chalcocite, low, Chalcocite, high, Chalcocite-Digenite Group, Cuprite, Djurleite, Goethite, Malachite, Pyrite	7.0	M0301 Chalcocite Image of Djurleite, Bornite, Chalcocite, Cuprite, Goethite, Malachite and Pyrite in specimen 'M0301 Chalcocite ' [CSIRO]. (C) 2025 CSIRO Mineral Resources. All rights reserved.
M2742 Chalcocite	CSIRO	Bornite (6.4%), Chalcocite-Digenite Group, Chalcopyrite, Digenite, high, Djurleite, Hematite, Quartz	6.4	M2742 Chalcocite Image of Djurleite, Bornite, Chalcopyrite, Digenite (var. high), Hematite and Quartz in specimen 'M2742 Chalcocite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.
M2732 Chalcocite	CSIRO	Bornite (3.3%), Chalcocite-Digenite Group, Chalcopyrite, Digenite, high, Djurleite, Tenorite	3.3	M2732 Chalcocite Image of specimen 'M2732 Chalcocite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.
M0297 Phosgenite	CSIRO	Anglesite, Bornite (3.1%), Calcite, Chalcocite, low, Chalcocite, high, Chalcocite-Digenite Group, Djurleite, Phosgenite	3.1	M0297 Phosgenite Image of Phosgenite, Anglesite, Bornite, Calcite, Chalcocite and Djurleite in specimen 'M0297 Phosgenite' [CSIRO]. (C) 2025 CSIRO Mineral Resources. All rights reserved.
