Quartz [ SiO₂ ]

Images of Quartz

CL spectrum of Quartz from the Tista River, Bangladesh

Rutilated quartz specimen, from Ibitiara, Bahia, Northeast Region, Brazil. Size: 6.6 x 5.5 x 5.1 cm.

Rob Lavinsky, iRocks.com – CC-BY-SA-3.0

CL spectrum of quartz from Khaldzan Buregte, Mongolia, showing a strong emission band at 710nm due to Fe3+. Fig19 in Götze 2000c

Image of smoky quartz in specimen 'NMNH G3293-00' (Smithsonian Institution - National Gem Collection) from Tschingelhorn, Bernese Alps, Switzerland. Weight: 5.65 ct

Photo by Chip Clark, Smithsonian Institution, Public Domain

Material properties

Formula	SiO₂
Abbreviation	Qz
Variants	crystalline, smoky, pegmatitic, granitic, volcanic phenocrysts, microcrystalline, igneous, rose, synthetic, metamorphic, glass, hydrothermal
Classification	Silica
Members	Flint, Chalcedony, Jasper, Amethyst, Agate, Citrine
Luminescence emitters	AlO4, (AlO4)0 hole traps, Dangling non-bridging oxygen ions, Defect, Extrinsic, Fe, FeO4, GeO4, (H3O4)0 hole traps, H4O4, Intrinsic, Intrinsic defect, Mn, NBOHC, Oxygen orbitals?, Reststrahlen, RSC, Self trapped exciton, Si-O, SiO4, SiOm[n-], Ti, TiO4, Unknown, Unspecified, UO2, Vacancy, Vacancy?, Various
Spectra	Luminescence (5), Reflectance (3)
IMA Status	Approved (IMA 1967 s.p.)
Search other databases	webmineral.com, mindat.org, rruf.info, mineralienatlas.de, Handbook of Mineralogy, American Mineralogist Crystal Structure Database
Related materials	Coesite, Cristobalite, Mogánite, Seifertite, Stishovite, Tridymite
Crystal symmetry	Amorphous
Tags	Mineral, Synthetic, Simple oxide, Simple oxide

Composition

Element	Atoms
Si	1
O	2
Total:	3

References for Quartz

Reference

Lines

Spectra

Images

Torpy et al. 2020, luminescence, other

Trukhin & Plaudis 1979

Vasyukova et al. 2013

Specimens of Quartz

Name	Owner	Materials	Phase purity	Image	Spectra	Techniques
M0324 Chalcopyrite / Quartz	CSIRO	Chalcopyrite, Jarosite, Quartz (46.0%)	46.0	M0324 Chalcopyrite / Quartz Image of Chalcopyrite, Jarosite and Quartz in specimen 'M0324 Chalcopyrite / Quartz' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	0	—

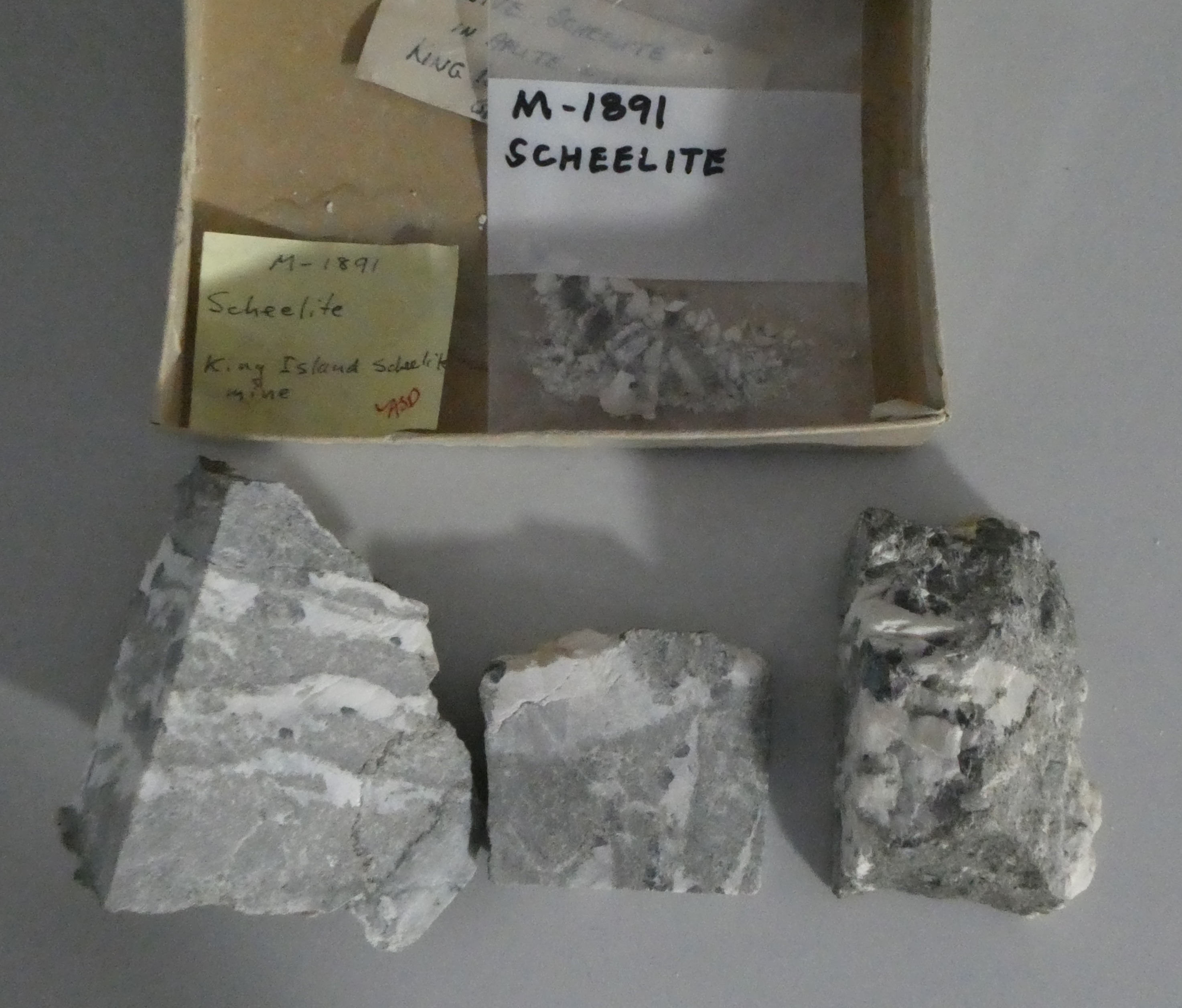

M1891 Quartz / Scheelite / Calcite	CSIRO	Calcite, Quartz (45.9%), Scheelite	45.9	M1891 Quartz / Scheelite / Calcite Image of Quartz, Calcite and Scheelite in specimen 'M1891 Quartz / Scheelite / Calcite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	0	—
M0638 Hematite / Quartz	CSIRO	Hematite, Maghemite, Quartz (45.1%)	45.1	M0638 Hematite / Quartz Image of Hematite, Maghemite and Quartz in specimen 'M0638 Hematite / Quartz' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	0	—
MES118 Quartz / Spessartine	CSIRO	Dolomite, Pyroxmangite, Quartz (44.4%), Spessartine	44.4	MES118 Quartz / Spessartine Image of Quartz, Dolomite, Pyroxmangite and Spessartine in specimen 'MES118 Quartz / Spessartine' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	0	—

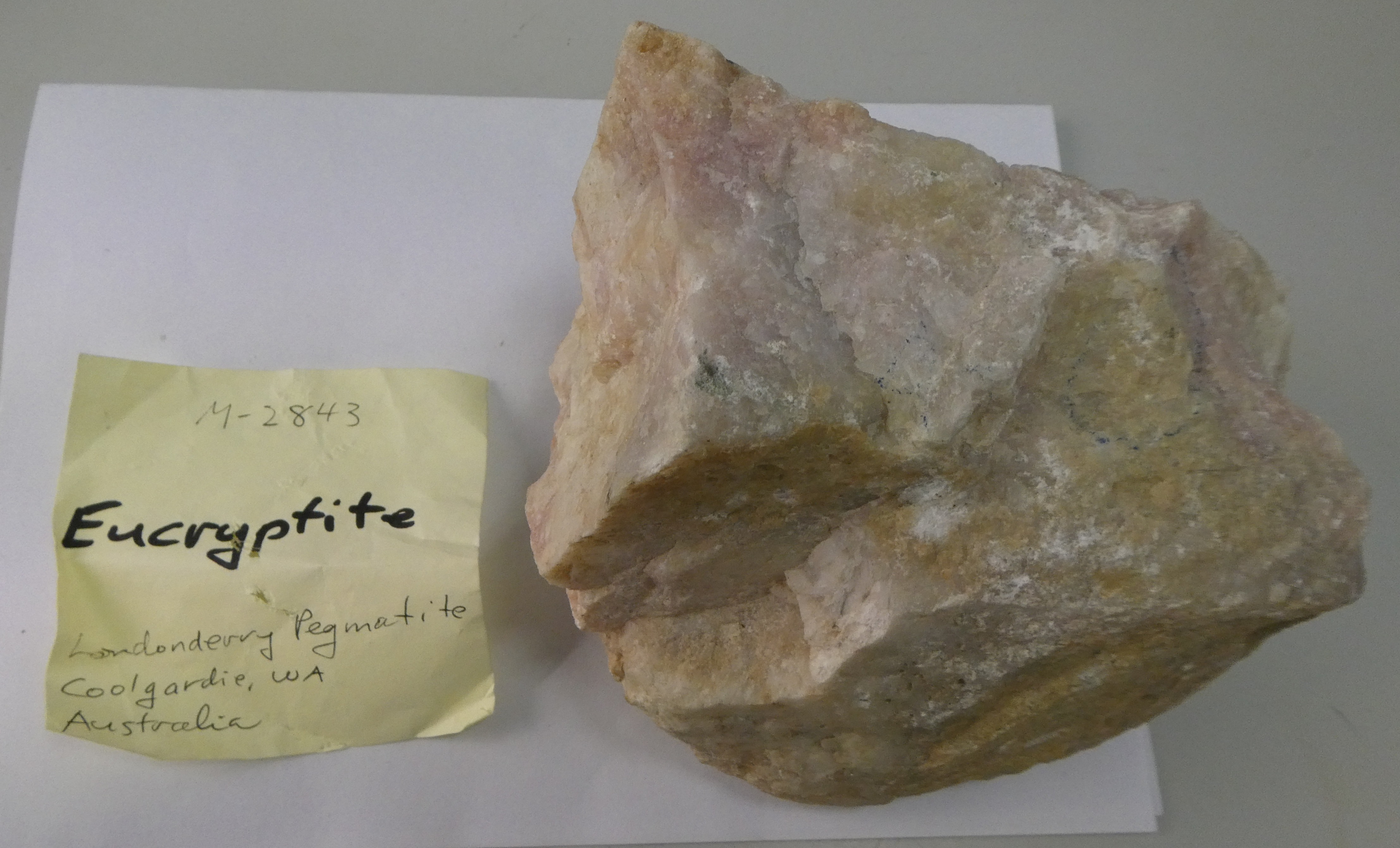

M2843 Quartz / Eucryptite	CSIRO	Clinochlore, Fe, Cookeite, Eucryptite, Kaolinite, poorly crystalline, Prehnite, Quartz (44.0%)	44.0	M2843 Quartz / Eucryptite Image of Eucryptite, Clinochlore (var. Fe), Cookeite, Kaolinite (var. poorly crystalline), Prehnite and Quartz in specimen 'M2843 Quartz / Eucryptite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	1	Reflectance
M0185 Quartz / Scheelite / Magnesio-hornblende	CSIRO	Ankerite, Magnesio-hornblende, Fe2+, Molybdenite-2H, Quartz (42.9%), Scheelite	42.9	M0185 Quartz / Scheelite / Magnesio-hornblende Image of Quartz, Ankerite, Magnesio-hornblende (var. Fe2+), Molybdenite-2H and Scheelite in specimen 'M0185 Quartz / Scheelite / Magnesio-hornblende' [CSIRO]. (C) 2025 CSIRO Mineral Resources. All rights reserved.	0	—
M1772 Monazite / Quartz	CSIRO	Monazite, Monazite-(Ce), Quartz (41.3%)	41.3	M1772 Monazite / Quartz Image of Monazite, Monazite-(Ce) and Quartz in specimen 'M1772 Monazite / Quartz' [CSIRO], from Queensland, Australia. (C) 2026 CSIRO Mineral Resources. All rights reserved.	1	Reflectance

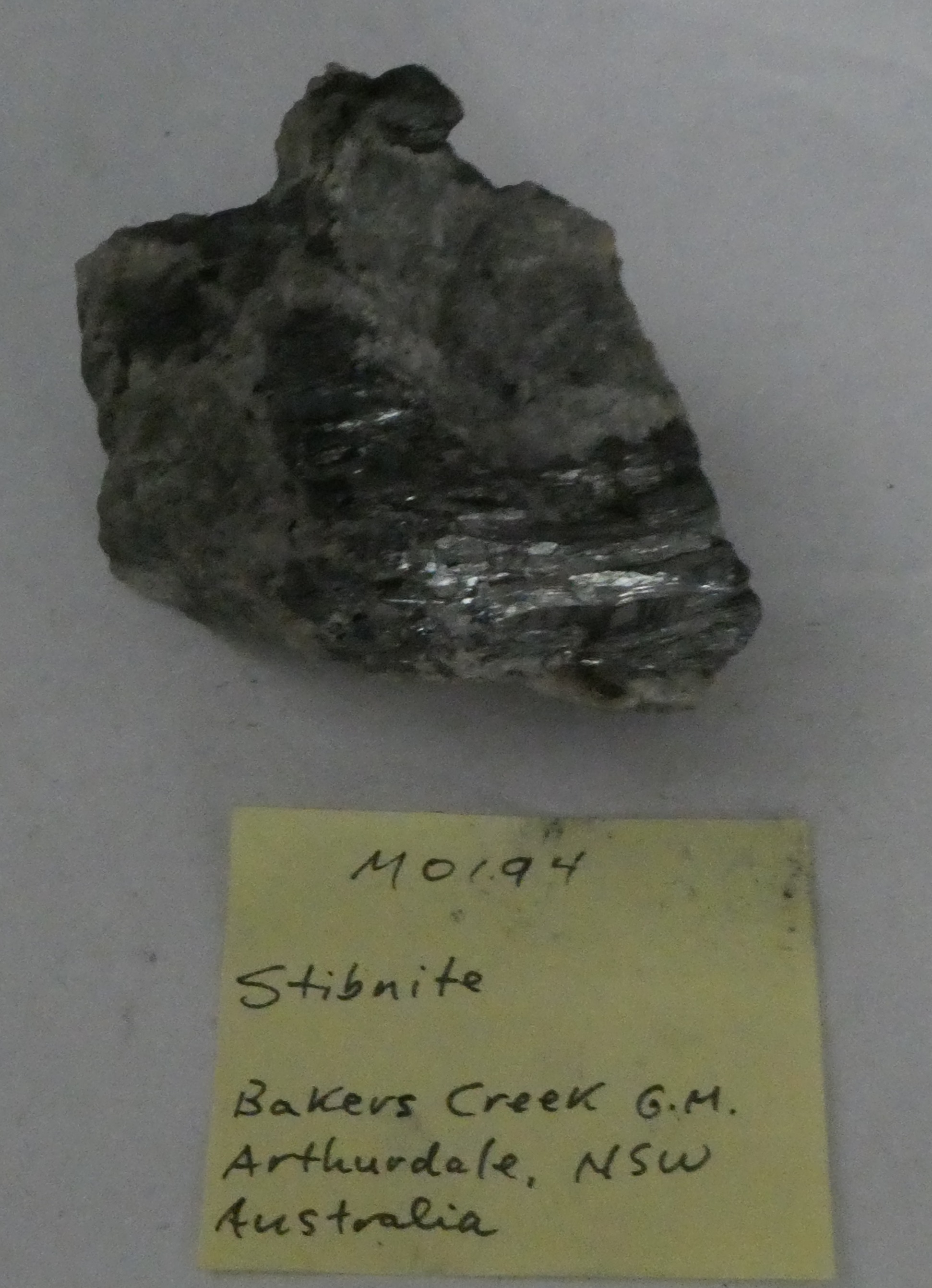

M0194 Quartz / Stibnite / Microcline	CSIRO	Microcline, Quartz (41.2%), Stibnite	41.2	M0194 Quartz / Stibnite / Microcline Image of Quartz, Microcline and Stibnite in specimen 'M0194 Quartz / Stibnite / Microcline' [CSIRO]. (C) 2025 CSIRO Mineral Resources. All rights reserved.	0	—
M0852 Rhodochrosite / Quartz	CSIRO	Pyrite, Quartz (40.6%), Rhodochrosite, Sphalerite	40.6	M0852 Rhodochrosite / Quartz Image of Rhodochrosite, Pyrite, Quartz and Sphalerite in specimen 'M0852 Rhodochrosite / Quartz' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	0	—
MES201 Quartz / Calcite / Aragonite	CSIRO	Albite, Ca, Aragonite, Calcite, Microcline, Orthoclase, Quartz (40.0%)	40.0	MES201 Quartz / Calcite / Aragonite Image of Quartz, Albite (var. Ca), Aragonite, Calcite, Microcline and Orthoclase in specimen 'MES201 Quartz / Calcite / Aragonite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	0	—
M2597 Bornite / Quartz / Digenite	CSIRO	Ankerite, Bornite, Calcite, Chalcocite, Digenite, Quartz (39.0%)	39.0	M2597 Bornite / Quartz / Digenite Image of Bornite, Ankerite, Calcite, Chalcocite, Digenite and Quartz in specimen 'M2597 Bornite / Quartz / Digenite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	0	—
M2783 Goethite / Quartz	CSIRO	Cassiterite, Goethite, Quartz (38.7%)	38.7	M2783 Goethite / Quartz Image of Goethite, Cassiterite and Quartz in specimen 'M2783 Goethite / Quartz' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	0	—

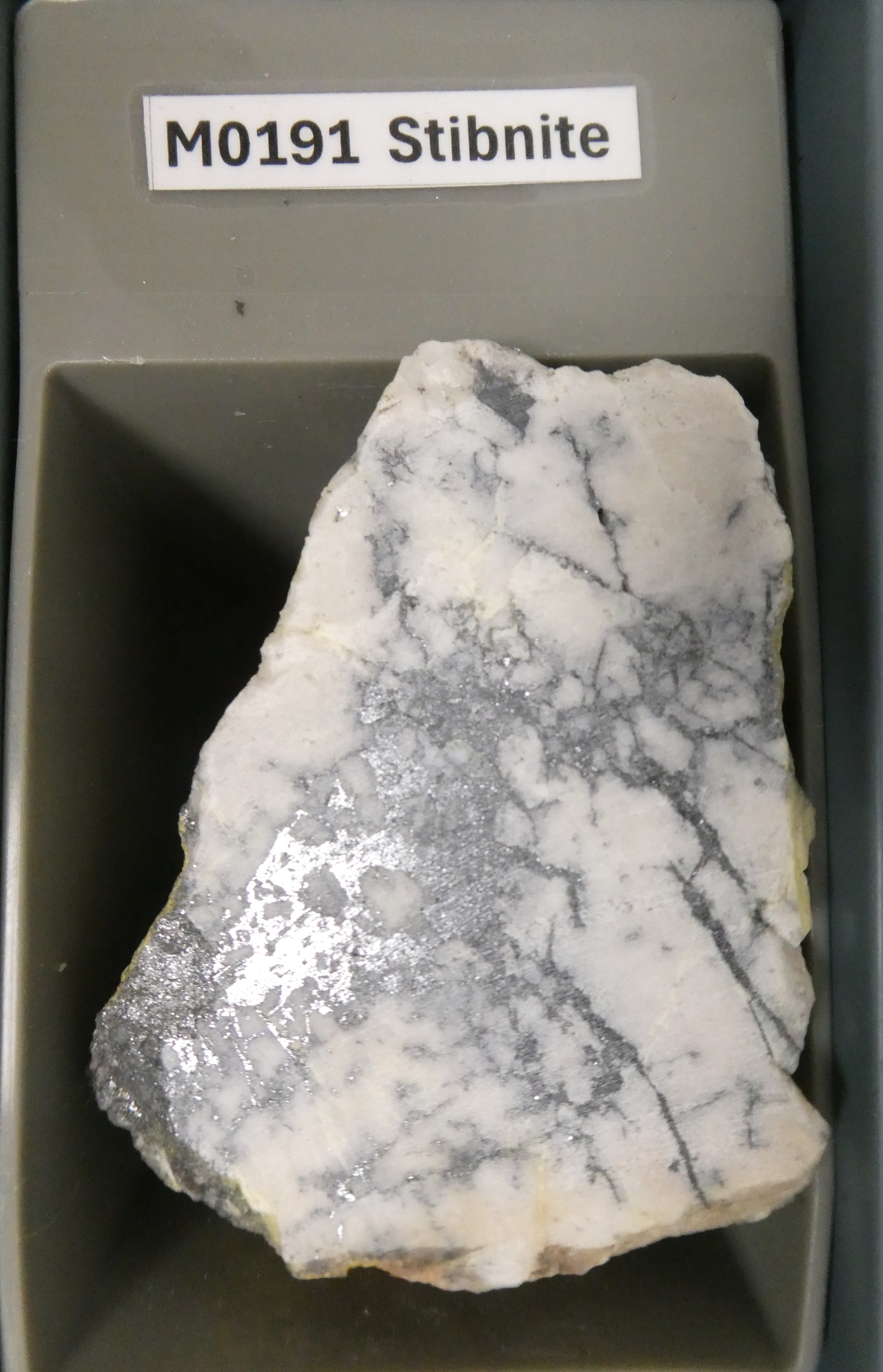

M0191 Stibnite / Quartz	CSIRO	Quartz (36.9%), Stibnite	36.9	M0191 Stibnite / Quartz Image of Stibnite and Quartz in specimen 'M0191 Stibnite / Quartz' [CSIRO]. (C) 2025 CSIRO Mineral Resources. All rights reserved.	0	—
M0330 Bornite / Quartz	CSIRO	Bornite, Quartz (36.8%)	36.8	M0330 Bornite / Quartz Image of Bornite and Quartz in specimen 'M0330 Bornite / Quartz' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	0	—
M1413 Quartz / Grossular / Almandine	CSIRO	Almandine, Clinochlore, Fe, Grossular, Ilmenite, Muscovite-1M, Quartz (36.5%)	36.5	M1413 Quartz / Grossular / Almandine Image of Quartz, Almandine, Clinochlore (var. Fe), Grossular, Ilmenite and Muscovite-1M in specimen 'M1413 Quartz / Grossular / Almandine' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	0	—
M2478 Bornite / Quartz / Digenite	CSIRO	Bornite, Chalcocite, Digenite, Quartz (36.3%)	36.3	M2478 Bornite / Quartz / Digenite Image of Bornite, Chalcocite, Digenite and Quartz in specimen 'M2478 Bornite / Quartz / Digenite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	0	—
M0268 Cinnabar / Quartz	CSIRO	Cinnabar, Hematite, Quartz (35.7%)	35.7	M0268 Cinnabar / Quartz Image of Cinnabar, Hematite and Quartz in specimen 'M0268 Cinnabar / Quartz' [CSIRO]. (C) 2025 CSIRO Mineral Resources. All rights reserved.	0	—

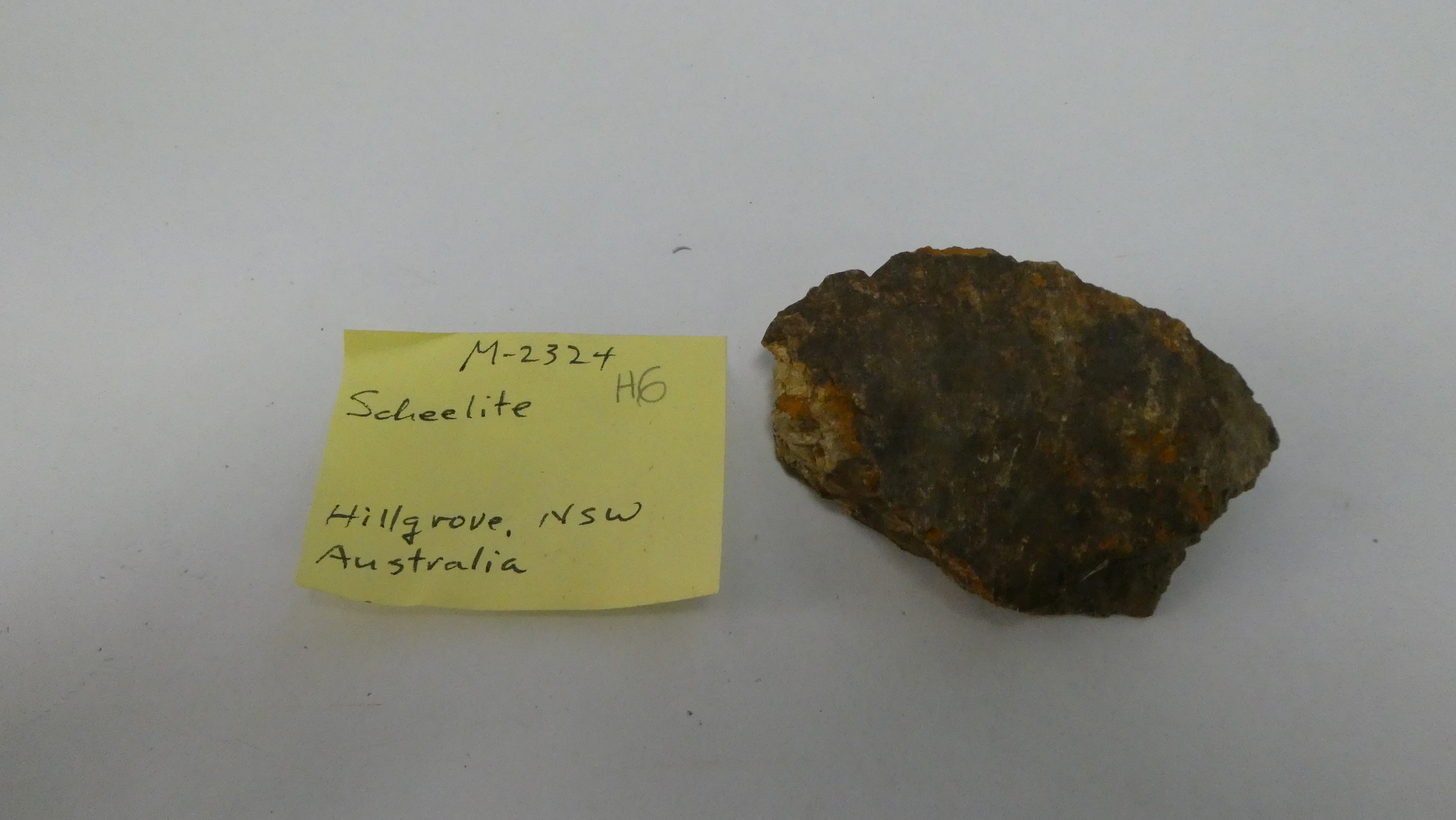

M2324 Scheelite / Quartz	CSIRO	Fluorapatite, Quartz (35.7%), Scheelite	35.7	M2324 Scheelite / Quartz Image of Scheelite, Fluorapatite and Quartz in specimen 'M2324 Scheelite / Quartz' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	0	—
PSP_E Eucryptite / Quartz / Kaolinite	CSIRO	Cookeite, Eucryptite, Kaolinite, poorly crystalline, Pollucite, Quartz (35.0%)	35.0	PSP_E Eucryptite / Quartz / Kaolinite Image of Eucryptite, Cookeite, Kaolinite (var. poorly crystalline), Pollucite and Quartz in specimen 'PSP_E Eucryptite / Quartz / Kaolinite' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	1	Reflectance

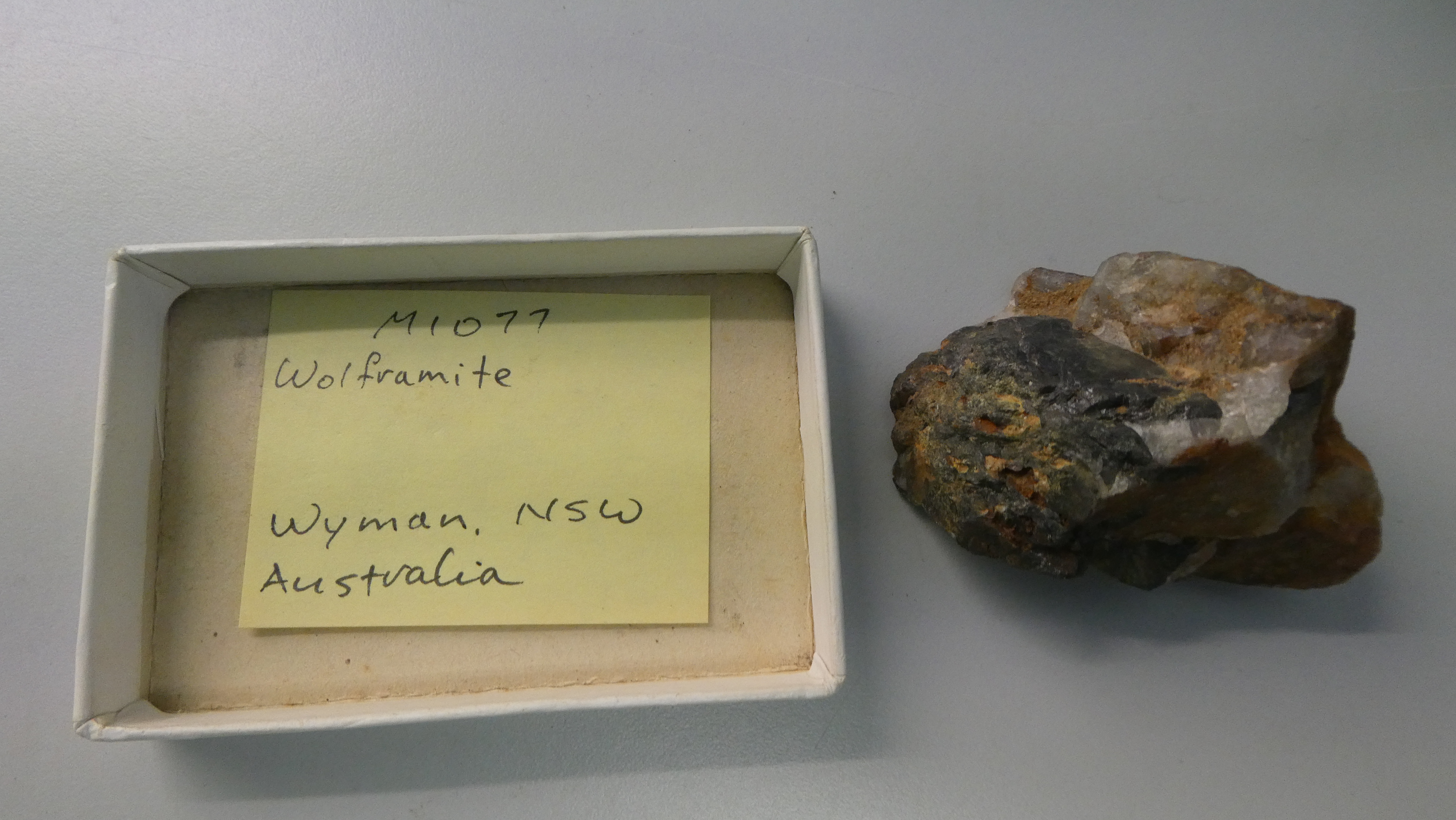

M1077 Ferberite / Quartz	CSIRO	Ferberite, Quartz (33.7%), Scheelite	33.7	M1077 Ferberite / Quartz Image of Ferberite, Quartz and Scheelite in specimen 'M1077 Ferberite / Quartz' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	0	—
M1155 Fluorapatite / Quartz	CSIRO	Calcite, Fluorapatite, Muscovite-1M, Muscovite-2M1, Quartz (33.0%)	33.0	M1155 Fluorapatite / Quartz Image of Fluorapatite, Calcite, Muscovite-1M, Muscovite-2M1 and Quartz in specimen 'M1155 Fluorapatite / Quartz' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	0	—
M0014 Stibnite / Quartz	CSIRO	Ankerite, Muscovite-1M, Muscovite-2M1, Quartz (31.6%), Stibnite	31.6	M0014 Stibnite / Quartz Image of Stibnite, Ankerite, Muscovite-1M, Muscovite-2M1 and Quartz in specimen 'M0014 Stibnite / Quartz' [CSIRO]. (C) 2025 CSIRO Mineral Resources. All rights reserved.	0	—
M0339 Muscovite / Quartz	CSIRO	Ankerite, Dolomite, Muscovite-1M, Muscovite-2M1, Pyrite, Quartz (31.0%)	31.0	M0339 Muscovite / Quartz Image of Muscovite-2M1, Ankerite, Dolomite, Muscovite-1M, Pyrite and Quartz in specimen 'M0339 Muscovite / Quartz' [CSIRO]. (C) 2026 CSIRO Mineral Resources. All rights reserved.	0	—
CP054 Quartz / Spodumene / Albite	CSIRO	Albite, Microcline, Muscovite-2M1, Orthoclase, Quartz (30.3%), Spodumene	30.3		0	—
M0196 Stibnite / Quartz	CSIRO	Quartz (29.4%), Stibiocolumbite, Stibnite	29.4	M0196 Stibnite / Quartz Image of Stibnite, Quartz and Stibiocolumbite in specimen 'M0196 Stibnite / Quartz' [CSIRO]. (C) 2025 CSIRO Mineral Resources. All rights reserved.	0	—
